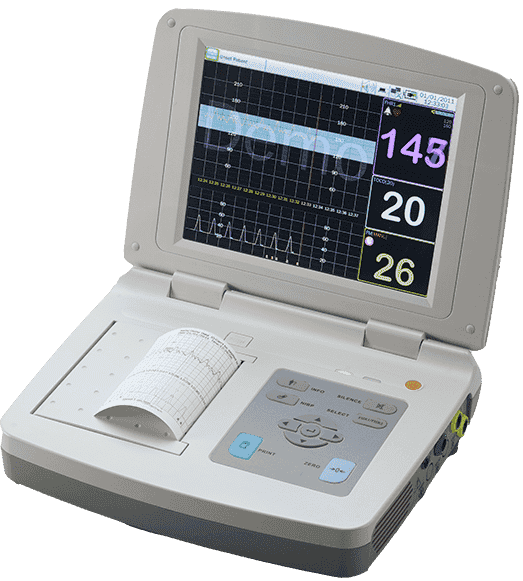

Infutek – Fetal Monitor Mcare K Series

The Infutek Fetal Monitor from the Mcare K Series delivers dependable, high-performance monitoring for clinics, hospitals, and doctors’ practices. From routine prenatal checkups to managing high-risk pregnancies, this compact device ensures precision and comfort.

🔹 Key Features:

• Compact & Lightweight Design – Ideal for any clinical setting

• 10.4” Foldable High-Brightness TFT LED Display

• Memory Backup – Stores over 8000 hours of data

• Minimal Operating Keys – Simplified user interface

• Audio-Visual Alarms – Instant alerts for critical changes

• Highly Sensitive 12-Crystal Ultrasound Transducer

• Wide Beam Pulse Doppler Technology for accurate FHR detection

• Built-in Thermal Printer

• USB & Ethernet Connectivity for data transfer

📊 Technical Specifications:

• Display: 10.4” Color TFT LED

• Resolution: 800 × 600 pixels

• FHR Measurement Range:

  • US Standard: 30–240 bpm

  • EU Standard: 50–210 bpm

• Accuracy: ±1 bpm

• Ultrasound Frequency: 1 MHz ± 3%

• Intensity: <3 mW/cm²

• TOCO Range: 0–100 units

• TOCO Resolution: 1 unit

• Measurement Method: Strain gauge sensor
